Product Description
PC Tail shielded contacts provide a cost effective packaging solution for limited space applications where connectors are attached to printed circuit boards. High reliability is assured with factory pre-assembled contacts and standardized termination to the board. PC Tail contacts are available for MIL-DTL-38999 Series II.
For improved performance we recommend Milnec compatible MIL-DTL-38999 Series II style connectors.
Specifications
- SAE-AS39029: Pin meets or exceeds the requirements and specifications of M39029/58-360, except as indicated
- Contact Material: Suitable copper alloy
- Contact Finish: Gold plate per IAW ASTM B488-01, Type II, Code C, Class 1.25 (.000050 Min) over nickel IAW AMS QQ-N-290, Class 1, .000050-.000100 thick
Data Sheet
View other D38999 Series II PCB Contact Sizes Build 38999 Connector with PCB Contacts

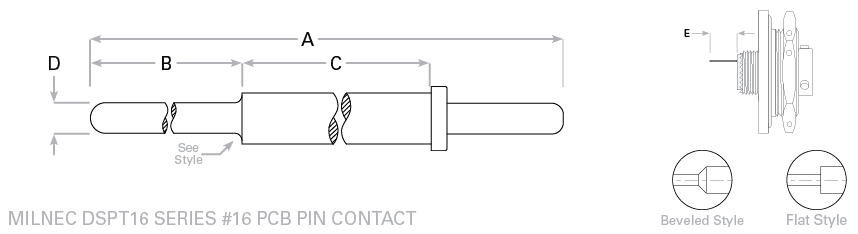

MIL-DTL-38999 Series II – #16 PCB Pin Contacts
| Part Number | Popular | A | B | C | D | Shoulder Style | E Tail Stickout‡ DS00, DS02, DS04, DS07 Shells | E Tail Stickout‡ DS03 Shells |
|---|---|---|---|---|---|---|---|---|
| DSPT16-101 | ★ | .870 (22.10) | .237 (6.02) | .328 (8.33) | .062 (1.58) | Flat | .034 (.86) – .064 (1.63) | .139 (3.53) – .169 (4.29) |
| DSPT16-102 | .882 (22.40) | .305 (7.75) | .280 (7.11) | .062 (1.58) | Beveled | .046 (1.17) – .076 (1.93) | .151 (3.84) – .181 (4.60) | |
| DSPT16-103 | .940 (23.88) | .385 (9.78) | .250 (6.35) | .062 (1.58) | Beveled | .104 (2.64) – .134 (3.40) | .209 (5.31) – .239 (6.07) | |
| DSPT16-104 | ★ | 1.044 (26.52) | .411 (10.44) | .328 (8.33) | .062 (1.58) | Beveled | .208 (5.28) – .238 (6.05) | .313 (7.95) – .343 (8.71) |
| DSPT16-105 | 1.058 (26.87) | .426 (10.82) | .328 (8.33) | .062 (1.58) | Beveled | .222 (5.64) – .252 (6.40) | .327 (8.31) – .357 (9.07) | |
| DSPT16-106 | ★ | 1.178 (29.92) | .545 (13.84) | .328 (8.33) | .062 (1.58) | Beveled | .342 (8.69) – .372 (9.45) | .447 (11.35) – .477 (12.12) |
★ Popular: Most Popular Call-Outs, Best In-Stock Solutions
‡ Extension Tolerances: ± 0.02 (0.5mm)
Note: #22M and #22D contacts are interchangeable. Tail stickout dimensions are for Milnec connectors. When used in compatible connectors from other brands, dimensions can vary as much as ±0.10 inches due to manufacturing differences.
How To Order Your Milnec MIL-DTL-38999 Series II Type Connector with PCB Contacts
To quickly order your 38999 connector prefilled with your preferred PC tail contacts, take your connector part number and replace the P (pin) or S (socket) with X (PC tail pin) or Y (PC tail socket) and simply add the Dash Number of the preferred contact tail length. For example to order a DS07W10-35PN with DSPT22-106 PC tail contacts, order DS07W10-35XN-106.
