MIL-DTL-38999 Series II Size #22D PCB Socket Contacts
Product Description
PC Tail shielded contacts provide a cost effective packaging solution for limited space applications where connectors are attached to printed circuit boards. High reliability is assured with factory pre-assembled contacts and standardized termination to the board. PC Tail contacts are available for MIL-DTL-38999 Series II.
For improved performance we recommend Milnec compatible MIL-DTL-38999 Series II style connectors.
Specifications
- SAE-AS39029: Mating interface meets or exceeds the requirements and specifications of M39029/58-360, except as indicated
- Contact Material: Suitable copper alloy
- Mating Interface Finish: Gold plate per IAW ASTM B488-01, Type II, Code C, Class 1.25 (.000050 Min) over nickel IAW AMS QQ-N-290, Class 1, .000050-.000100 thick
Data Sheet
View other D38999 Series II PCB Contact Sizes Build 38999 Connector with PCB Contacts

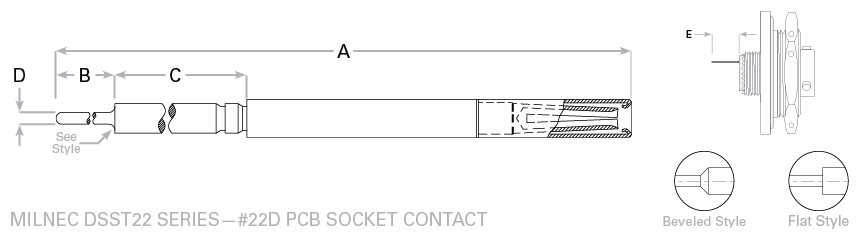

D38999 Series II – #22D PCB Socket Contacts
| Part Number | Popular | A | B | C | D | Shoulder Style | E Tail Stickout‡ Min – Max DS00, DS02, DS04, DS07 Shells |
E Tail Stickout‡ Min – Max DS03 Shells |
|---|---|---|---|---|---|---|---|---|
| DSST22-102 | ★ | .786 (19.96) | .145 (3.68) | .355 (9.01) | .019 (.48) | Beveled | – | .055 (1.40) – .085 (2.16) |
| DSST22-103 | ★ | .799 (20.30) | .233 (5.92) | .280 (7.11) | .019 (.48) | Beveled | – | .068 (1.73) – .098 (2.49) |
| DSST22-104 | .809 (20.55) | .243 (6.17) | .280 (7.11) | .019 (.48) | Beveled | - .006 (.15) | .078 (1.98) – .108 (2.74) | |
| DSST22-105 | .833 (21.16) | .172 (4.37) | .375 (9.53) | .019 (.48) | Beveled | - .027 (.69) | .102 (2.59) – .132 (3.35) | |
| DSST22-106 | ★ | .871 (22.12) | .305 (7.75) | .280 (7.11) | .019 (.48) | Beveled | .035 (.89) – .065 (1.65) | .140 (3.56) – .170 (4.32) |
| DSST22-107 | .915 (23.24) | .349 (8.87) | .280 (7.11) | .019 (.48) | Beveled | .079 (2.01) – .109 (2.77) | .184 (4.67) – .214 (5.44) | |
| DSST22-108 | .928 (23.57) | .266 (6.76) | .376 (9.55) | .019 (.48) | Beveled | .092 (2.34) – .122 (3.10) | .197 (5.00) – .227 (5.77) | |
| DSST22-109 | .962 (24.44) | .216 (5.49) | .460 (11.68) | .019 (.48) | Beveled | .126 (3.20) – .156 (3.96) | .231 (5.87) – .261 (6.63) | |
| DSST22-110 | 1.001 (25.43) | .435 (11.05) | .280 (7.11) | .019 (.48) | Beveled | .165 (4.19) – .195 (4.95) | .270 (6.86) – .300 (7.62) | |
| DSST22-111 | 1.022 (25.96) | .360 (9.14) | .376 (9.55) | .019 (.48) | Beveled | .186 (4.72) – .216 (5.49) | .291 (7.39) – .321 (8.15) | |
| DSST22-112 | 1.033 (26.24) | .371 (9.42) | .376 (9.55) | .019 (.48) | Beveled | .197 (5.00) – .227 (5.77) | .302 (7.67) – .332 (8.43) | |
| DSST22-113 | ★ | 1.040 (26.42) | .378 (9.60) | .376 (9.55) | .019 (.48) | Beveled | .204 (5.18) – .234 (5.94) | .309 (7.85) – .339 (8.61) |
| DSST22-114 | 1.068 (27.13) | .502 (12.75) | .280 (7.11) | .019 (.48) | Beveled | .232 (5.89) – .262 (6.66) | .337 (8.56) – .367 (9.32) | |
| DSST22-115 | 1.105 (28.10) | .539 (13.69) | .280 (7.11) | .019 (.48) | Beveled | .269 (6.83) – .299 (7.60) | .374 (9.50) – .404 (10.26) | |
| DSST22-116 | ★ | 1.151 (29.24) | .489 (12.42) | .376 (9.55) | .019 (.48) | Flat | .315 (8.00) – .345 (8.76) | .420 (10.67) – .450 (11.43) |
| DSST22-117 | 1.250 (31.75) | .588 (14.94) | .376 (9.55) | .019 (.48) | Beveled | .414 (10.52) – .444 (11.28) | .519 (13.18) – .549 (13.95) | |
| DSST22-118 | 1.286 (32.66) | .624 (15.85) | .376 (9.55) | .019 (.48) | Beveled | .450 (11.43) – .480 (12.19) | .555 (14.10) – .585 (14.86) | |
| DSST22-119 | 1.334 (33.88) | .562 (14.28) | .486 (12.34) | .019 (.48) | Beveled | .498 (12.65) – .528 (13.41) | .603 (15.32) – .633 (16.08) | |
| DSST22-120 | 1.424 (36.17) | .762 (19.36) | .376 (9.55) | .019 (.48) | Beveled | .588 (14.94) – .618 (15.70) | .693 (17.60) – .723 (18.36) | |
| DSST22-121 | 1.698 (43.13) | .205 (5.21) | 1.207 (30.66) | .019 (.48) | Beveled | .862 (21.90) – .892 (22.66) | .967 (24.56) – .997 (25.32) |
★ Popular: Most Popular Call-Outs, Best In-Stock Solutions
‡ Extension Tolerances: ± 0.02 (0.5mm)
Note: #22M and #22D contacts are interchangeable. Tail stickout dimensions are for Milnec connectors. When used in compatible connectors from other brands, dimensions can vary as much as ±0.10 inches due to manufacturing differences.
How To Order Your Milnec MIL-DTL-38999 Series II Type Connector with PCB Contacts
To quickly order your 38999 connector prefilled with your preferred PC tail contacts, take your connector part number and replace the P (pin) or S (socket) with X (PC tail pin) or Y (PC tail socket) and simply add the Dash Number of the preferred contact tail length. For example to order a DS07W10-35PN with DSPT22-106 PC tail contacts, order DS07W10-35XN-106.
