MIL-DTL-38999 Series I Size #20 PCB Pin Contacts
Product Description
PC Tail shielded contacts provide a cost effective packaging solution for limited space applications where connectors are attached to printed circuit boards. High reliability is assured with factory pre-assembled contacts and standardized termination to the board. PC Tail contacts are available for MIL-DTL-38999 Series I.
For improved performance we recommend Milnec compatible MIL-DTL-38999 Series I style connectors.
Specifications
- SAE-AS39029: Mating interface meets or exceeds the requirements and specifications of M39029/58-363, except as indicated
- Contact Material: Suitable copper alloy
- Mating Interface Finish: Gold plate per IAW ASTM B488-01, Type II, Code C, Class 1.25 (.000050 Min) over nickel IAW AMS QQ-N-290, Class 1, .000050-.000100 thick
Data Sheet
View other 38999 Series I PCB Contact Sizes Build D38999 Connector with PCB Contacts

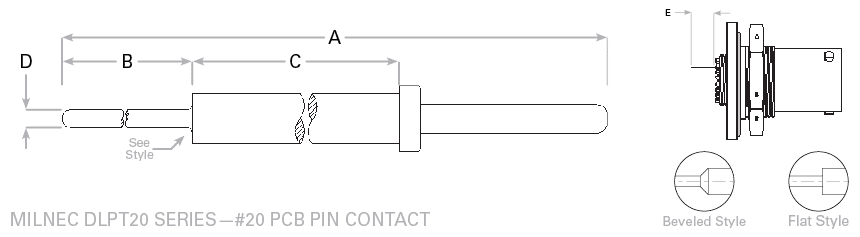

MIL-DTL-38999 Series I – #20 PCB Pin Contact Dimensions
| Part Number | Popular | A | B | C | D | E Tail Stickout‡ DL02, DL03 Shells | E Tail Stickout‡ DL00, DL04, DL07 Shells |
|---|---|---|---|---|---|---|---|
| DLPT20-101 | .960 (24.38) | .406 (10.31) | .257 (6.53) | .019 (.48) | .270 (6.86) | .060 (1.52) | |
| DLPT20-102 | ★ | 1.035 (26.29) | .293 (7.44) | .445 (11.30) | .019 (.48) | .345 (8.76) | .135 (3.43) |
| DLPT20-103 | 1.077 (27.36) | .335 (8.51) | .445 (11.30) | .019 (.48) | .387 (9.83) | .177 (4.50) | |
| DLPT20-104 | 1.112 (28.25) | .370 (9.40) | .445 (11.30) | .019 (.48) | .422 (10.72) | .212 (5.39) | |
| DLPT20-105 | 1.132 (28.75) | .390 (9.91) | .445 (11.30) | .019 (.48) | .442 (11.23) | .232 (5.89) | |
| DLPT20-106 | 1.164 (29.57) | .502 (12.75) | .365 (9.27) | .019 (.48) | .474 (12.04) | .264 (6.71) | |
| DLPT20-107 | ★ | 1.170 (29.72) | .428 (10.87) | .445 (11.30) | .019 (.48) | .480 (12.19) | .270 (6.86) |
| DLPT20-108 | ★ | 1.194 (30.33) | .437 (11.10) | .460 (11.68) | .019 (.48) | .504 (12.80) | .294 (7.47) |
| DLPT20-109 | 1.222 (31.04) | .480 (12.19) | .445 (11.30) | .019 (.48) | .532 (13.51) | .322 (8.18)) | |
| DLPT20-110 | 1.377 (34.98) | .635 (16.13) | .445 (11.30) | .019 (.48) | .687 (17.45) | .477 (12.12) | |
| DLPT20-111 | 1.447 (36.75) | .705 (17.91) | .445 (11.30) | .019 (.48) | .757 (19.23) | .547 (13.89) | |
| DLPT20-112 | 1.481 (37.62) | .927 (23.55) | .257 (6.53) | .019 (.48) | .791 (20.09) | .581 (14.76) |
★ Popular: Most Popular Call-Outs, Best In-Stock Solutions
‡ Extension Tolerances: ± 0.02 (0.5mm)
Note: #22M and #22D contacts are interchangeable. Tail stickout dimensions are for Milnec connectors. When used in compatible connectors from other brands, dimensions can vary as much as ±0.10 inches due to manufacturing differences.
How To Order Your Milnec MIL-DTL-38999 Series I Type Connector with PCB Contacts
To quickly order your 38999 connector prefilled with your preferred PC tail contacts, take your connector part number and replace the P (pin) or S (socket) with X (PC tail pin) or Y (PC tail socket) and simply add the Dash Number of the preferred contact tail length. For example to order a DL07W11-35PN with DLPT22-106 PC tail contacts, order DL07W11-35XN-106.
