Amphenol 88-56977x-xxx Connector Equivalent
88-56977x-xxx Connector & PC Tail Contact Equivalent
Milnec offers equivalents for Amphenol 88-56977x-xxx connectors in all shell sizes with matching PCB contacts. Milnec connectors are 100% compatible in form, fit, and function to the Amphenol counterparts. The connectors and contacts are built to the MIL-DTL-38999 Series III specification.
For new designs, Milnec offers a wide range of PCB contact lengths and sizes for use in standard TX00 (D38999/20), TX07 (D38999/24), and TX02 style receptacles, which are fully compatible will all MIL-DTL-38999 Series III stye connectors.
Specifications
- MIL-DTL-38999 Series III: Connector is 100% compatible in form, fit, and function to the mil-spec
- Contact Material: Suitable copper alloy
- Contact Finish: Gold plate per IAW ASTM B488-01, Type II, Code C, Class 1.25 (.000050 Min) over nickel IAW AMS QQ-N-290, Class 1, .000050-.000100 thick
View other 88/91- Connectors Build Amphenol 88-56977x-xxx Connector Equivalent
Popular Amphenol 88-56977x-xxx Configurations
| Amphenol Part Number | Contacts | Order Milnec Part Number |
|---|---|---|
| 88-569771-35P | 6 x #22D PCB Pins | TX02W9-35XN-125 |
| 88-569771-98P | 3 x #20 PCB Pins | TX02W9-98XN-125 |
| 88-569772-35P | 13 x #22D PCB Pins | TX02W11-35XN-125 |
| 88-569772-35S | 13 x #22D PCB Sockets | TX02W11-35YN-125 |
| 88-569773-35I | 22 x #22D PCB Pins | TX02W13-35XB-125 |
| 88-569774-35S | 37 x #22D PCB Sockets | TX02W15-35YN-125 |
| 88-569775-35H | 55 x #22D PCB Sockets | TX02W17-35YA-125 |
| 88-569775-35S | 55 x #22D PCB Sockets | TX02W17-35YN-125 |
| 88-569776-35P | 66 x #22D PCB Pins | TX02W19-35XN-125 |
How To Order Your Amphenol 88-56977x-xxx Equivalent with PCB Contacts
To quickly order your 88-56977x-xxx equivalent, you must first cross it to a Milnec part number. See our part builder for instruction on how to cross-reference your part.

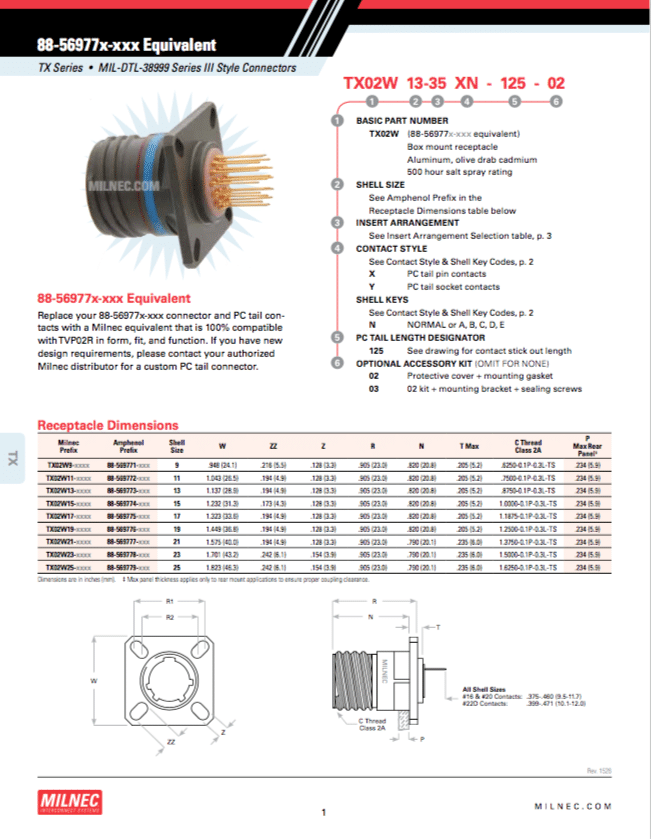

88-56977x-xxx Drawing & Dimensions
